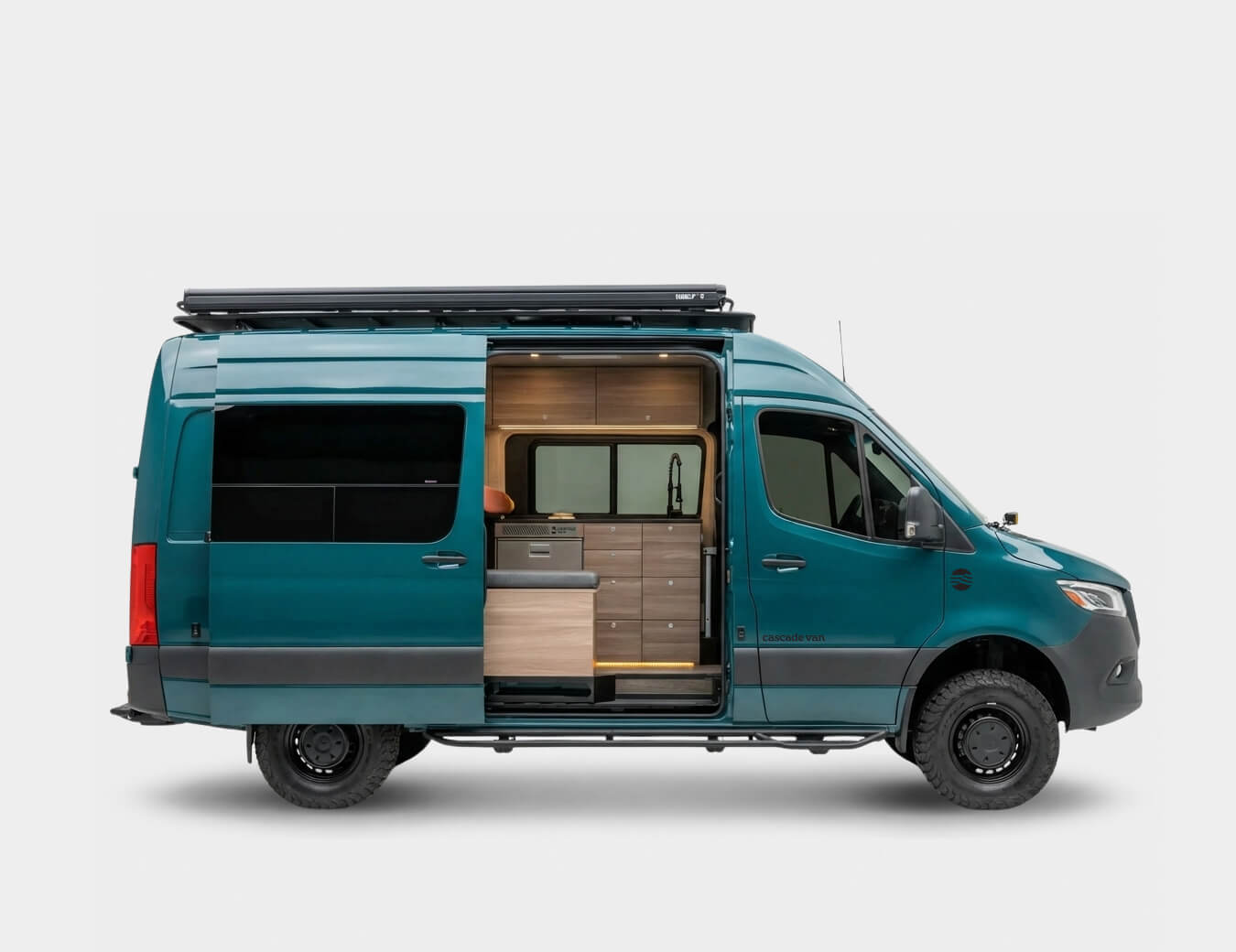

Pinedrop 144"
The Pinedrop Series is our most versatile and configurable layout for the 144" Mercedes Sprinter chassis. Two versions, Big and Little, to tackle the most common battles of vanlife: Seating, Sleeping & Storage.
Pinedrop 144" highlights
Built for flexible travel
It can seat and sleep up to 3 people, making it ideal for solo trips, couples, or small group adventures.
Ready for off-grid living
It includes solar power, lithium battery storage, water tanks, a fridge, cooktop, and outdoor shower for camping without relying on hookups.
Comfortable in different seasons
With insulation, ventilation, dimmable lighting, and heat/hot water, it is designed for a more comfortable van life experience.
Our most flexible van layout is built to adapt to the way you travel. Whether you need more sleeping space, a bigger kitchen area, extra storage, or a spot for a third passenger to sit and sleep, the Pinedrop floor plan is designed to make it work.
Included
Seating and Sleeping
- Seats & Sleeps up to 3 vanlifers
- Removable N-S Platform Bed w/ 6" Memory Foam Mattress
Cabinetry, Storage and Other Amenities
- Driver Side Upper Cabinets, Full Length Front-to-Back, w/ Control Center
- Driver Side 50" Kitchen Galley
- Garage Cabinets w/ Large Flip Down Storage
- Passenger Side 36" Bench w/ Waxed Canvas Cushion (Deleted in Big Drop w/ 3rd Seat)
- Premium Soft-Close Drawer and Door Mechanisms
- Fully Adjustable Dovetail Drawer Boxes
- Gas Struts for Assisted Open
- Marine Grade Locking Cabinet Latches
- Lagun Table Assembly w/ Two Mounting Points (Serves Bench and Cockpit Seats)
Walls, Ceiling and Floors
- Upholstered Wall and Ceiling Panels w/ Soft-Touch Foam Underlayment
- 2Tec2 100% Waterproof Woven Vinyl Flooring
- Slider Door Step Extension w/ Storage Cubby
- Marine Grade Subfloor
- Stainless Steel Structural Body Reinforcements
- Cockpit Overhead Storage Shelf
- Sound Deadening Package
- Four Season Full Insulation Package (R-10 (includes body, doors and wheel wells)
- Upholstery Finish on Vehicles Exposed Interior Metal
- Optional Fiberglass Body Bumpouts for E-W Sleeping Configuration
Electrical System
- 368Ah Expion LiFePo4 Battery
- Full Victron Power System
- MultiPlus 3000W Inverter/Charger
- Orion 50A DC-DC Charger from Alternator
- Lynx Distributor
- 500A Smart Shunt
- Ekranos Touch Display
- Smart Solar Charge Controller 100|30
- Blue Seas 12v & 120V Circuit Breaker Panels
- 200W Rooftop Solar Array
- 30A Shore Power Inlet
- Cabin 120v and 12v Outlets
Lighting
- Four Zones of Dimmable LED lighting
- Overhead Ceiling Lights
- Under Cabinet Galley Task
- Under Cabinet Bedside Mood
- Toekick/Aisle Accent (galley and bench)
- Bedside Reading Lights
- Garage Lights
- Four Zones of Dimmable LED lighting
Water System
- 20 Gal. Fresh Water Tank (BPA Free)
- 10 Gal. Grey Water Tank, Undermounted
- Digital Water Sensors (Levels Displayed in Ekranos Screen)
- Quick Connect City Fill
- Shurflo Water Pump- 12v | 3.0gpm
- Rear Outdoor Shower w/ Magnetic Privacy Curtain
- PEX and Food-Grade Poly Vinyl Plumbing
Climate Control
- Four Season Full Insulation Package (R-Value 10+ (includes body and doors))
- MaxxAir 7500k Deluxe Vent Fan w/ Remote
- Bedside Fan
- Rixen Hydronic System (Supplies Heat and Hot Water)
Windows
- AMA Screened, Vented Passenger Sliding Door Window
- AMA Screened, Vented Driver Forward Window
Appliances
- Stowable Single Burner Induction Cooktop
- Dometic NRX 115 Fridge w/ Freezer (3.8cu.ft.)
Exterior Components
- Double Loop Roof Rack w/ Perforated Decking
- Side Ladder
- Side Steps
Warranty
We offer a one year craftsmanship and materials warranty.
Other Notes
**Vehicle not included. Client will supply vehicle themselves, purchase one from Cascade Van's inventory, or solicit allocation services from our team.
*Renderings and photos may show optional accessories and varied configurations of this layout.
Little Drop vs. Big Drop
Choose the layout that fits the way you travel. Whether you prefer a simple, efficient setup or a roomier design with more flexibility, Pinedrop gives you options to build a van that works for your needs.
Little Drop
This version of Pinedrop is our most straight forward layout and is absolutely ideal for the vanlifers who want all the functionality of more complex builds in a simplified format. Featuring front to back sleeping, our mid-sized galley and ample storage in the right places. This version of Pine Drops covers all the bases for a quick weekend getaway, longer cross country trips, or even full time vanlife.
Big Drop
This version of Pinedrop includes Flarespaces for a sideways sleeping orientation which makes room for our largest galley, more storage and more sleeping capacity. A simple change with a big impact. By rotating the bed 90 degrees we also make room for an optional third seat as well. This seat can also be folded down into a bed for additional sleeping quarters.
Gallery
Some optional features shown
Customization
Everything you can customize in the Pinedrop 144" conversion.
Choose Your Pinedrop Layout
Pick between the Big Drop or Little Drop and build the setup that fits how you travel. Whether you want more sleeping space, a larger kitchen area, extra storage, or a seat that can also sleep a third person, Pinedrop gives you the flexibility to choose what works best for you.
Make the Interior Yours
Your van should feel like your own, not like a standard RV. Choose your upholstery, flooring, cabinetry, countertops, hardware, and accent colors to create an interior that matches your personal style.
Upgrade for the Adventure Ahead
Complete your build with add-ons made for comfort, performance, and adventure. From exterior gear and power upgrades to AC, suspension, or bumper options, Pindrop can be customized to support the way you want to travel.
We've got answers
Common questions about our Pinedrop 144" floor plan, build process, and more.
What's the difference between the Big Drop and Little Drop versions?
Both versions of the Pinedrop are built on the same 144" Sprinter and include the same core systems. They differ in how the interior splits its space between seating, sleeping and storage. That's the trade-off every small van has to make, and the Pinedrop lets you choose which way it leans. The comparison slider above shows the two side by side, and we're happy to walk through which fits the way you travel.
Can the Pinedrop carry a third person?
Yes. The Pinedrop seats and sleeps up to three, which makes it one of the few 144" layouts that works for a couple plus a kid, a friend or a dog-sitter-turned-co-pilot, without stepping up to a longer van.
Which way does the bed run, and can it come out?
The platform bed runs north-south (front to back) with a 6" memory foam mattress, so neither sleeper has to climb over the other. It's removable, so you can pull it to haul bikes, furniture or a season's worth of gear.
Why build on a 144" Sprinter instead of a 170"?
A 144" van is easier to live with every day: it fits ordinary parking spaces, turns around on narrow forest roads and feels like driving a large SUV. If you don't need the extra length for a shower or a family sleeping setup, the Pinedrop gives you a complete off-grid camper in the most manageable footprint.
How do I make the Pinedrop my own?
Start with "Build yours" to choose the version, finishes and upgrades and see the price update as you go. Once you send it over, we follow up to refine the details before anything is cut.
